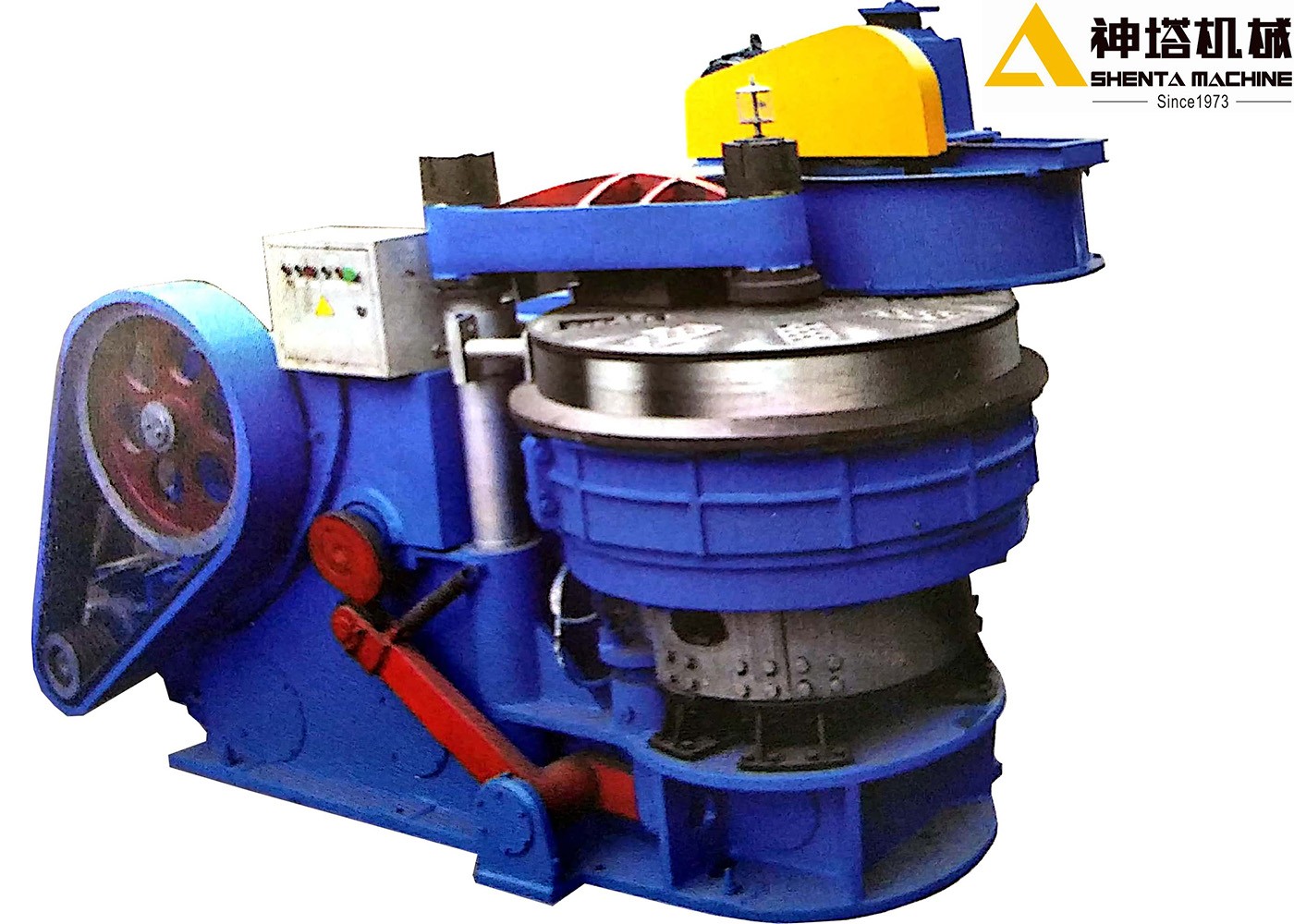

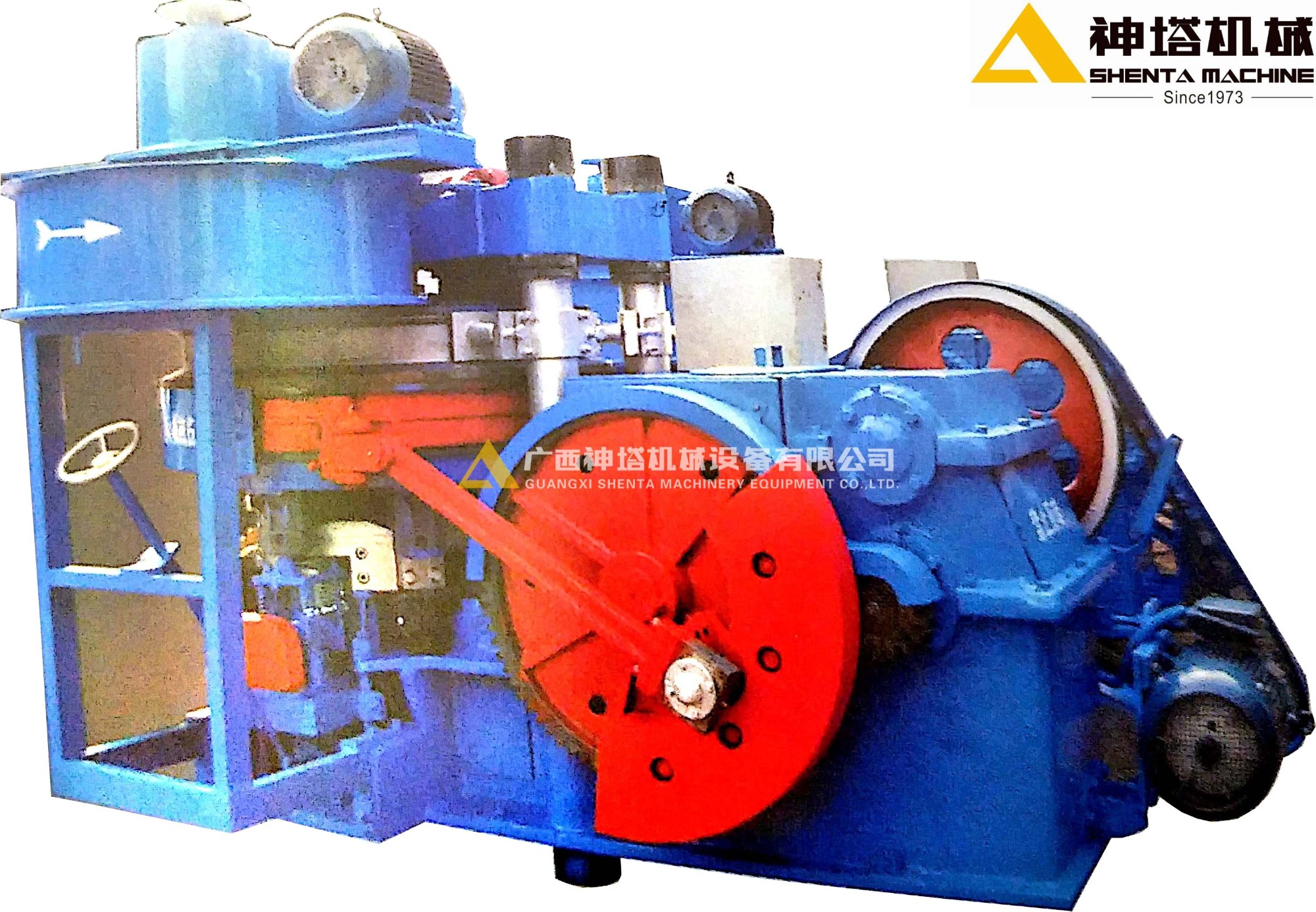

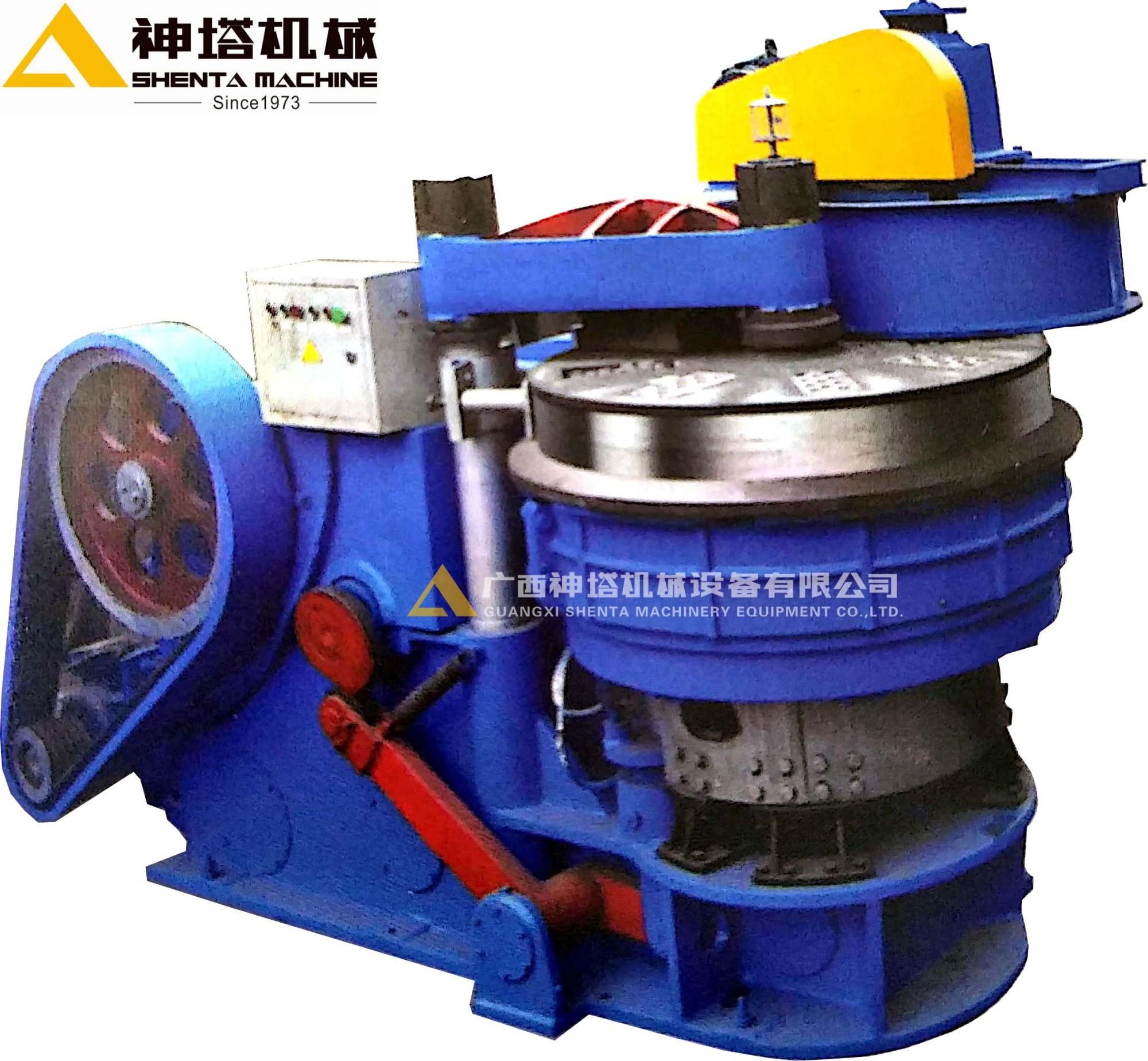

This machine is the first choice for the production of no-fire blind porous brick. (this machine is a three-stage transmission, circulating oil lubrication system), it can replace the forming mold, and can suppress the blind hole brick and solid brick of different specifications. It is the forming equipment for the brick making with fly ash, slag, river sand and stone powder as the main raw materials.
Max.Capacity (Pcs./Hour) | 1500-1600 | Host Machine Power (KW) | 18.5 |
Max.Pressure (KN) | 2800 | Feeding Motor Power (KW) | 3 |
Block Size (mm) | （190-250）x(90-150)x(53-90) | Vibration Motor Power (KW) | 1.1 |
Pressure Units (MPA) | ≤50 | Max.Padding Dept (mm) | 230 |
Porous Rate (%) | ≤25 | Each Forming (Pcs.) | 1 |
Dimension (mm) | 3150x1800x2710 | Mould boxes Quantity (Set) | 8 |
